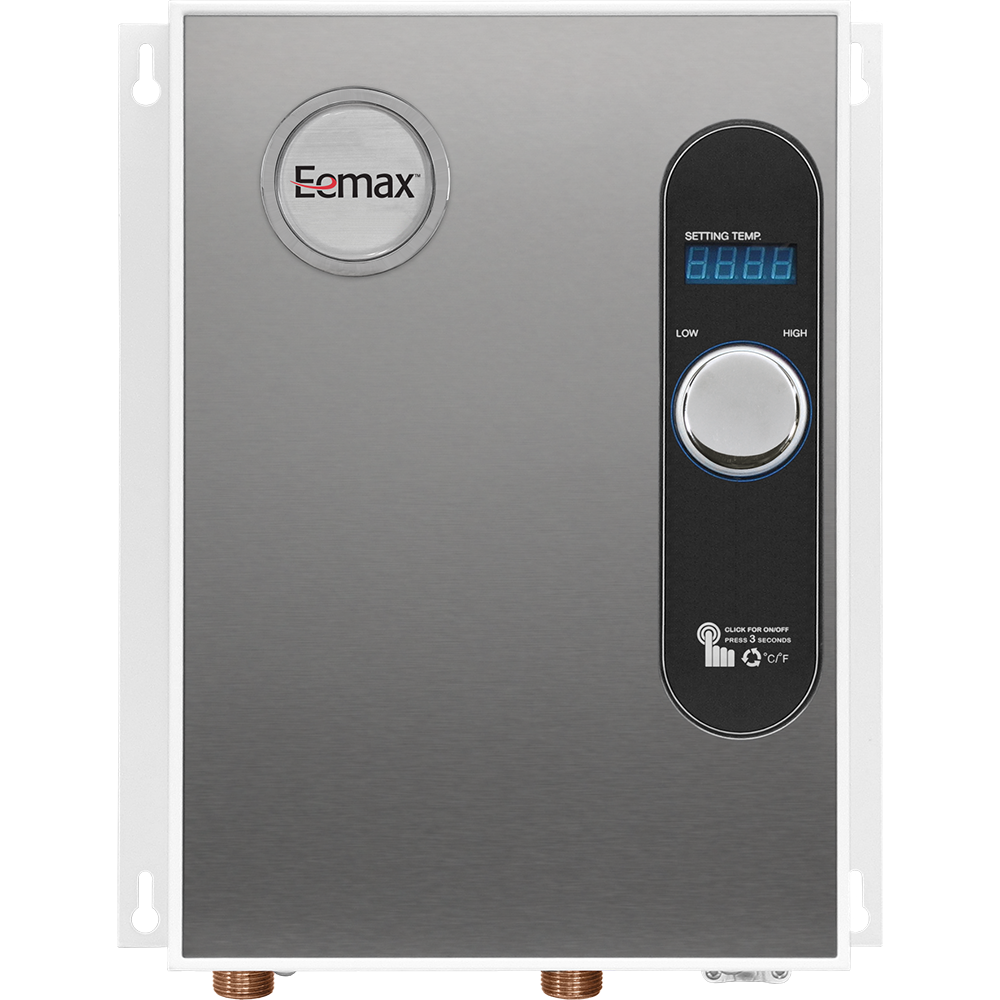

Home Advantage II Electric Tankless Water Heater (18kW 240V)
Product Details
MODEL: HA018240
Brand: Eemax
Weight: 15.80 lbs
Overview
- For residential single point-of-use or multiple fixtures
- On-demand, consistent, and endless hot water
- Compact design with temperature control from 80 ºF to 140 ºF
Electrical Specifications
| Power | 18kW |
| Volts | 240V |
| Phase | 1 |
| Amperage | 0 |
| Recommended Wire Size | 8 AWG |
Performance Specifications
| GPM Turn On | 0.3 |
| Physical Max Volume | 0 GPM |
| Minimum Operating Temperature | 80 |
| Max Operating Temperature | 140 |
| Minimum Operating Pressure | 35 PSI |
| Max Pressure Rating | 150 PSI |
Physical Specifications
| Height (in.) | 17" |
| Width (in.) | 14" |
| Depth (in.) | 3" |
| Weight | - |
| Color | Stainless Steel |
| Cover Material | Stainless Steel |
| Element Type | Immersion |
| Element Material | Copper |
Available Configurations
| Adjustable Thermostat | True |
| NEMA Cabinets Available | |
| Single Lav Model Available | No |
| Dual Lav Model Available | No |
| Multi Lave Model Available | No |
| Sanitation Model Available | No |
| Tepid Water Model Available | No |
| De-Ionized | No |
Plumbing Configuration
| Water Connection | 3/4" |
| NPT or Compression | NPT |
| Plumbing Configuration | Bottom feed |
| Hot or Cold Feed | Pre-heated or cold water feed |
| Aerator Supplied | |
| # of Aerators Supplied | 0 |
| GPM Flow Rate of Aerator Supplied | 7 |
Parts Available
| Element | HA-P005 |
| Board | HA-P025 |
| Board #2 | |
| Relay / Contactor | Call factory |
| Eco | Call factory |
| Triac | Call factory |
| Transformer | Call factory |
| Flow Meter | Call factory |
| Optical Board | |
| Are Cabinets Available | No |
Certifications / Qualifications
